I’m going to cover the steps I’ve taken to get power platform plugin packages working with managed identity. Hopefully, this will help someone accelerate their success without facing the same challenges I encountered.

This post is an extension of my previous blog Set up managed identity for Power Platform Plugins, so refer to it if you need details on how I create the certificate locally for use in my post-pack event.

You can find example code that I’ve provided on github here

Motivation

My primary goal was to enable the use of Azure libraries that provide clients to communicate with Azure resources. In my example, I’m using the BlobServiceClient.

Step 1: Signing the package

My event requires a certificate called ManagedIdentityPlugin to be installed in the users personal certificates. (Check my previous blog Set up managed identity for Power Platform Plugins if you need help doing this)

Here’s the process:

I had to download that certificate & install it in Trusted Root Certificate Authority (this is for nuget sign to work below)

This is to prevent getting the error:

NU3018: UntrustedRoot: A certificate chain processed, but terminated in a root certificate which is not trusted by the trust provider.

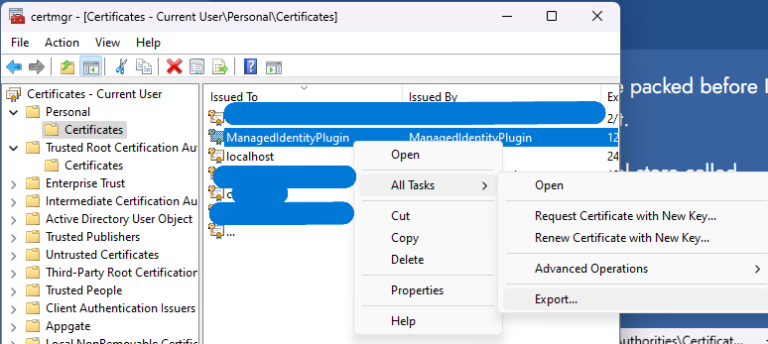

Find the certificate in Personal certificates, export, follow the wizard to the end using default options.

here

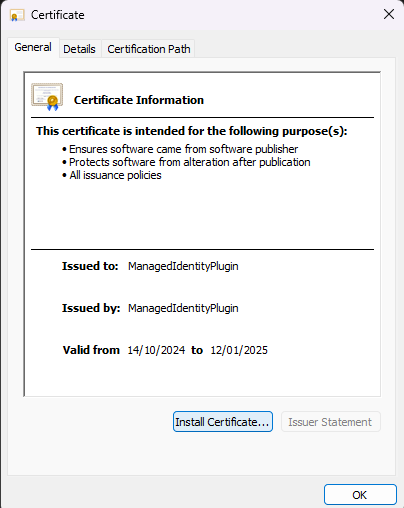

Open the exported certificate and select Install.

here

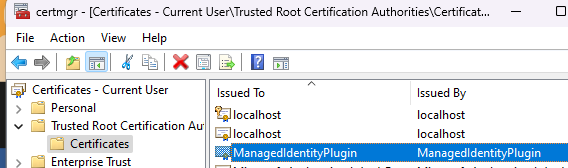

It should end up looking like this:

here

In my example code you will find that I’ve added a post pack event

here

The main differences with this are instead of using signtool I’m using dotnet nuget sign (I found it wouldn’t sign the nupkg only the .dll).

dotnet nuget sign $(ProjectDir)bin\$(ConfigurationName)\ManagedIdentityPlugin.1.0.0.nupkg --certificate-subject-name ManagedIdentityPlugin --overwrite --timestamper http://timestamp.digicert.com

The other main thing to take note of is I’ve placed it in the after pack event AfterTargets="Pack" This is because the nuget package needs to be packed before I can sign it, purely using post build event was not sufficient.

Step 2: Token to TokenCredential

Another hurdle was the azure client libraries expect one of these classes that provide a GetToken method, but the Microsoft IManagedIdentityService interface has AcquireToken which returns a string not an AccessToken object.

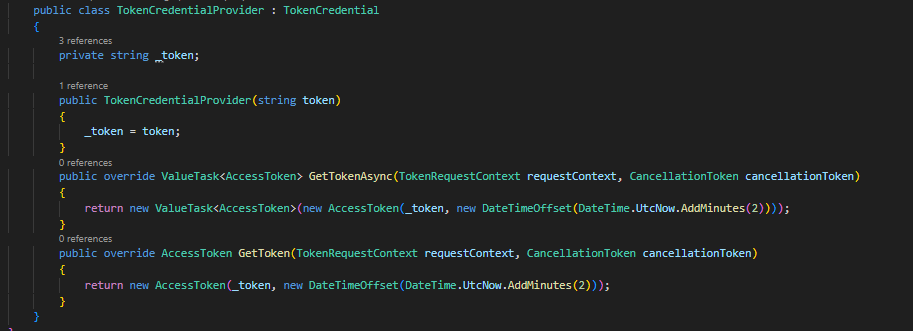

I created a class that seems to work (if there is a better way please someone tell me!)

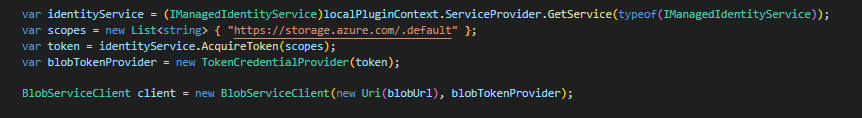

It simply takes the token you get from IManagedIdentityService, extends TokenCredential abstract class so you can pass it to BlobServiceClient constructor.

here

here

Step 3: Building the package

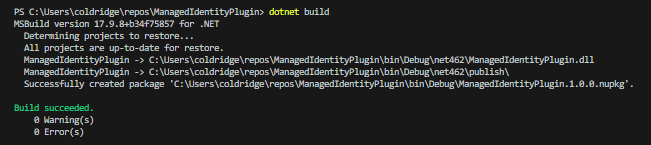

Building the plugin package is as easy as dotnet build

here

Step 4: Getting the package to register

I had lots of issues adding Azure.Storage.Blobs to my package. The main one was I kept getting errors like:

'Method not found: ‘System.BinaryData System.ClientModel.Primitives.IPersistableModel'

Eventually I found adding the package System.ClientModel directly seemed to resolve the issue.

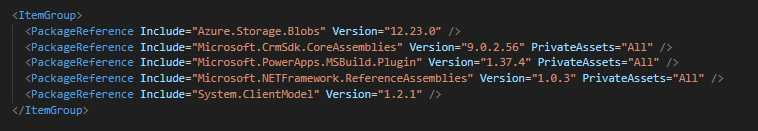

My installed packages look like this:

here

I registered the package with the Plugin Registration Tool.

Step 5: Associate the managed identity to the plugin package

Just as before, once you’ve registered your package you need to associate it to the managed identity in Dataverse, the main difference here is you are not associating it to the plugin.

Request

PATCH
https://<orgURL>/api/data/v9.0/pluginpackages(<PackageId>)

Body

{
    "managedidentityid@odata.bind": "/managedidentities(f712c637-ab8e-4f60-b740-110c10b22c1a)"
}

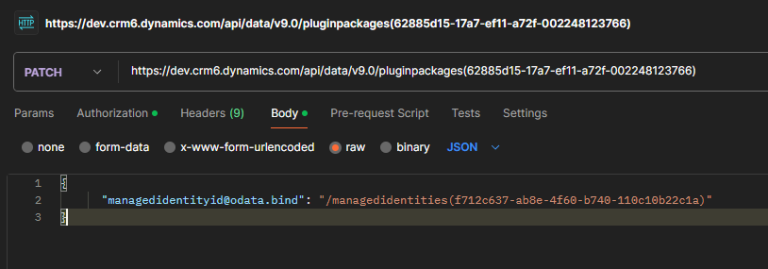

Here is an example request:

here

Conclusion:

Once you’ve done this you should have everything you need to get the best out of the microsoft provided azure libraries, securely connected to azure from Dataverse within a plugin package!
